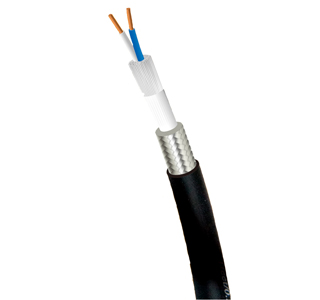

SM-2T2S Microphone Cable

Product description:
 23 AWG(0.30mm2) OFC conductors(60 Strands/0.08mm
   X 2C).
 XLPE insulation.
 Super high density tinned OFC braid shield.
 Flexible PVC jacket.
 Low capacitance and resistance.
 RoHS compliant.

Electronic Characteristic:
 Conductor resistance: 6.3Ω/100m.
 Shield resistance: 3.1Ω/100m.
 Capacitance(between conductors): 56pF/m.
 Capacitance(between conductors to shield): 116pF/m.
 Dielectric strength: 500VAC/1min.

Applications:
For connecting microphone and audio device.
