UL1095 Hook-up Wire

Product description:
 Rated temperature: 80°C.
 Rated voltage: 300 volts.
 Tinned or bare, stranded or solid copper conductor, 30-16 AWG.
 Color-coded lead free PVC insulation, and RoHS compliant.
 Passes UL VW-1 vertical flame test.
 Reference standard: UL 758 & UL 1581.
 Uniform thickness of wire to ensure easy stripping and cutting.

Applications:
For internal wiring in electric bookkeeping, accounting, time-recording machines, electronic, medical or dental equipment.

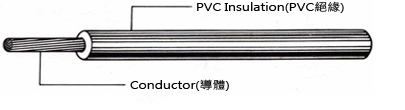

Construction:
P/N
Conductor

導體
Insulation

絕緣
Overall
Diameter
完成外徑
Standard
Put-up
標準長度
Conductor
Resistance
導體電阻
AWG
線號
No./mm
線數/線徑
Material
材質
Thickness
厚度/mm
mm
ft./Coil
英制
m/Coil
公制
at 20°C
Ω/kft.
1095-22
22
17/0.160
PVC
0.31
1.45
2000
610
18.10
1095-20
20
21/0.180
PVC
0.31
1.60
2000
610
11.20
1095-18
18
34/0.180
PVC
0.31
1.90
2000
610
7.06
1095-16
16
26/0.254
PVC
0.31
2.25
2000
610
4.45
