| UL1185 Single Conductor Shielded Wire Product description:  Rated temperature: 80°C. Rated voltage: 300 volts. Tinned or bare, stranded or solid copper conductor, 30-4/0 AWG. Lead free PVC insulation. Tinned or bare copper wire spiral shield. Lead free PVC Jacket, and RoHS compliant. Passes UL VW-1 vertical flame test. Reference standard: UL 758 & UL 1581.Applications: For internal wiring of electronic and electrical equipment. |

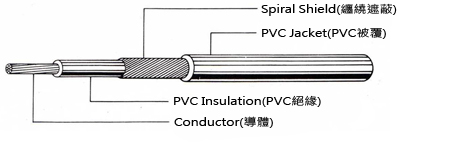

Construction: |
P/N |
Conductor 導體 |
Insulation 絕緣 |
Spiral Shield 纏繞遮蔽 |
Jacket 被覆 |
Overall Diameter 完成外徑 |
|||
AWG 線號 |
No./mm 線數/線徑 |
Material 材質 |
Thickness 厚度/mm |
No./mm 線數/線徑 |
Material 材質 |
Thickness 厚度/mm |
mm |
|
1185-22 |
22 |
17/0.160 |
PVC |
0.38 |
42/0.12 |
PVC |
0.38 |
2.70 |
1185-20 |
20 |
21/0.180 |
PVC |
0.38 |
47/0.12 |
PVC |
0.38 |
2.90 |
1185-18 |
18 |
34/0.180 |
PVC |
0.38 |
55/0.12 |
PVC |
0.38 |
3.15 |
1185-16 |
16 |
26/0.254 |
PVC |
0.38 |
61/0.12 |
PVC |
0.38 |
3.50 |
